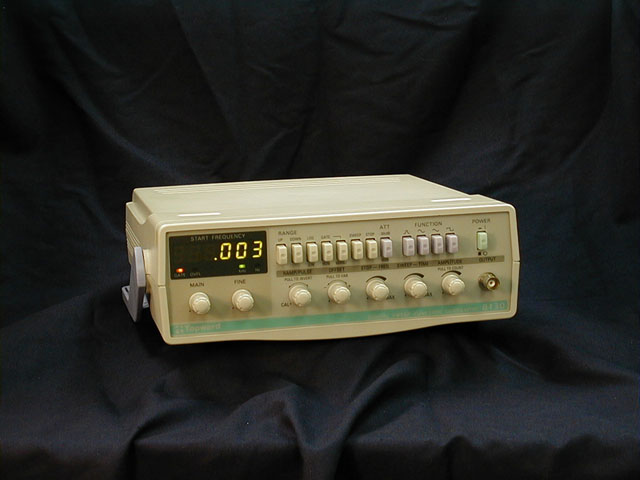

| Waveforms |
Sine, square, triangle, ramp,
pulse |
| Amplitude |
20Vp-p, Open [Output protected up
to 30V (DC+AC)] |
| Attenuator |
0dB, 30dB |
| Output Impedance |
50W ± 10% for main and sync |
| DC Offset |
+10V ~ -10V |
| Duty Control |
20:80 (frequency unchanged)
continuously variable with 50:50 calibrated switch |
| V.C.F. |
0 to +5V control frequency to
1000:1 |
| Frequency Range |
0.1Hz to 5MHz in 7 ranges |
| Frequency Accuracy |
Counter accuracy |
| Distortion |
< 1%, 10Hz ~ 100KHz |
| Rise/Fall Time |
< 100nS |
| Rise Time for Sync Output |
< 25nS |
| Sync Output Level |
> 3Vp-p (Open), 20 TTL Load |
| Sweep Type |
Linear, Log |
| Sweep Width |
> 100:1, continuously variable |
| Sweep Rate |
From 100mS to 1S, continuously
variable |
| Frequency Counter Display |
6 digits 0.4" green LED
display with Hz, KHz, GATE, OVFL LED |
| Frequency Counter Mode |
Func./Count |
| Frequency Counter Attenuator |
0db, 30dB |
| Frequency Counter Accuracy |
± (Time base accuracy+1 count) |
| Frequency Counter Time Base |
10MHz± 10ppm (28° C± 5° C) |
| Frequency Counter Resolution |
0.1Hz, 1Hz, 10Hz, 100Hz, 1KHz |
| Frequency Counter Gate Time |
10S, 1S, 0.1S, 0.01S |
| Frequency Counter Range |
10Hz to 100MHz |
| Frequency Counter Sensitivity |
£
50mVrms (10Hz to 100MHz) |
| Frequency Counter Maximum Input |
150Vrms |
| Frequency Counter Input Impedance |
1MW//100pF |
| Power Requirement |
115/230 Vac; 50/60Hz single phase |
| Accessories Supplied |
Power cord, hook-up leads,
intruction manual |
| Dimension |
10.2"(W) x 3.3"(H) x
10.1"(D) |
| Weight |
4.4 Pounds |
